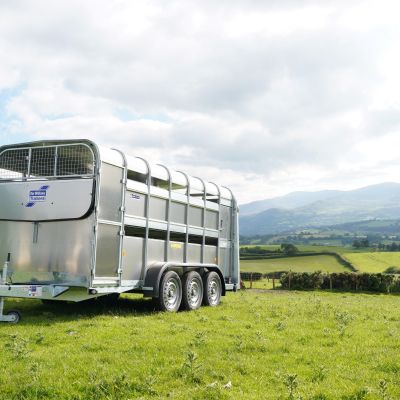

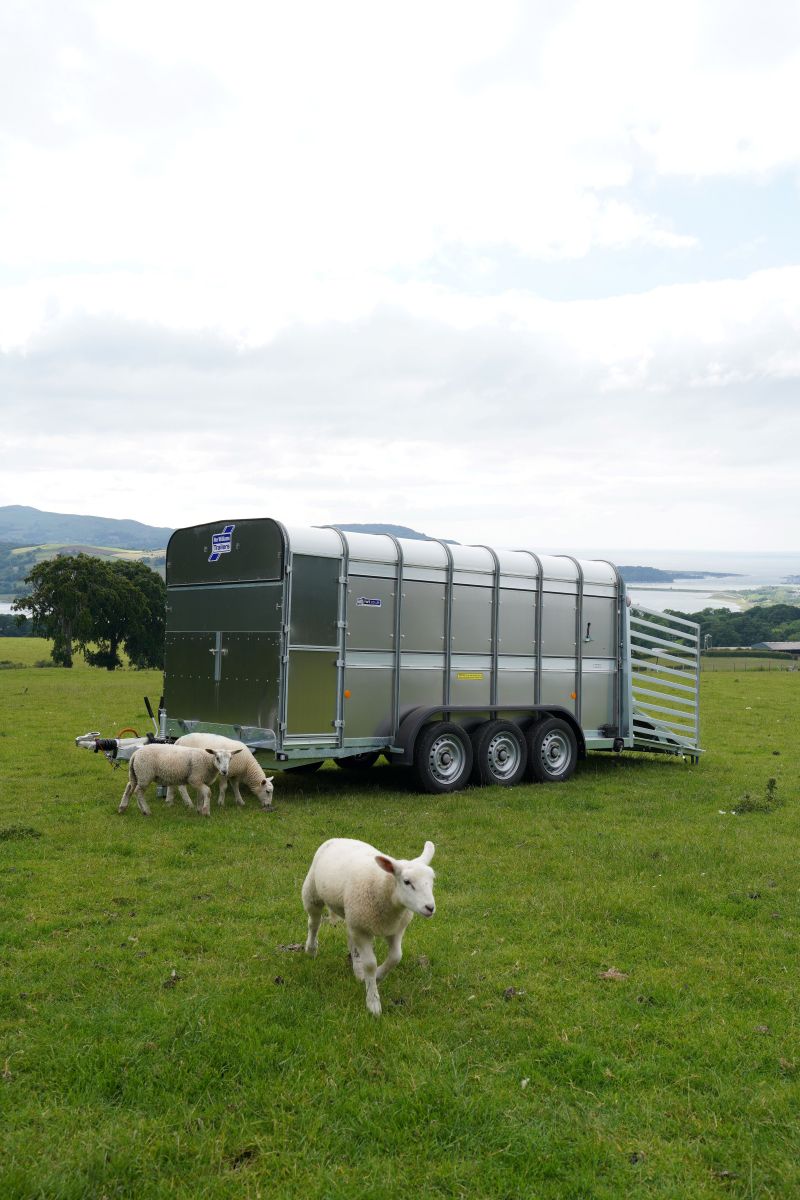

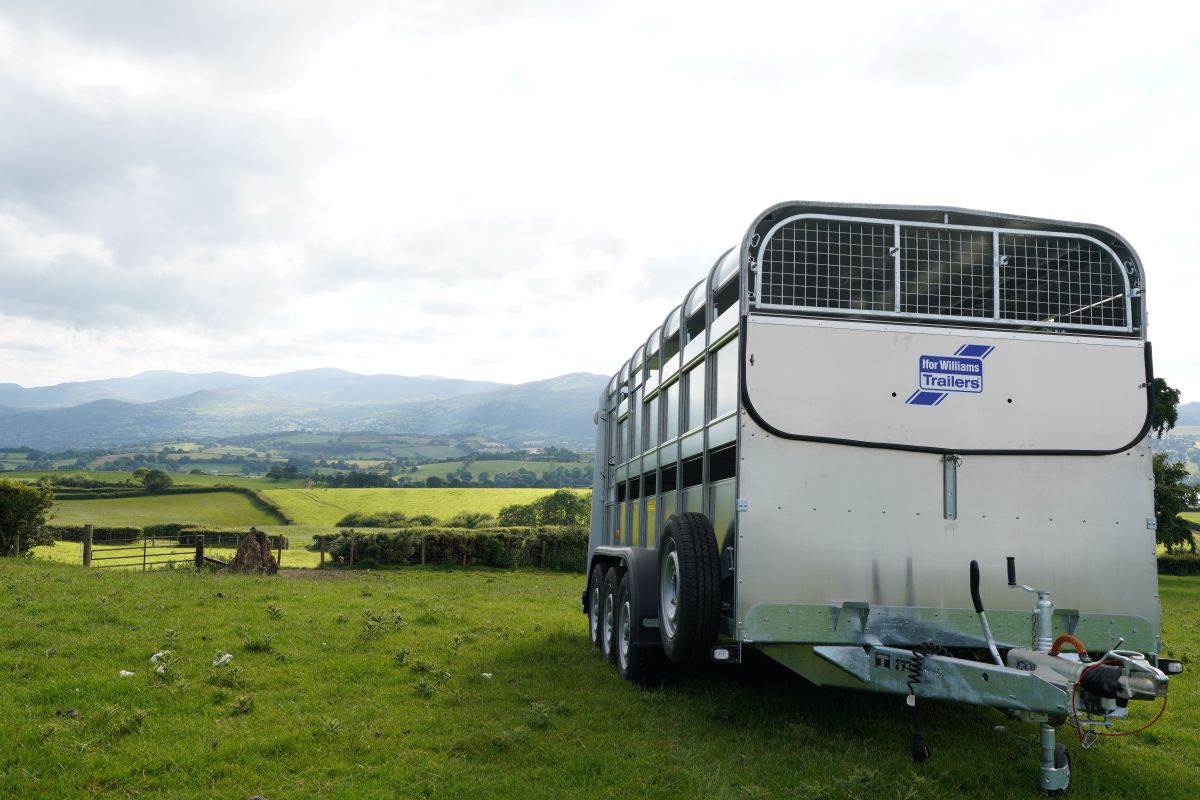

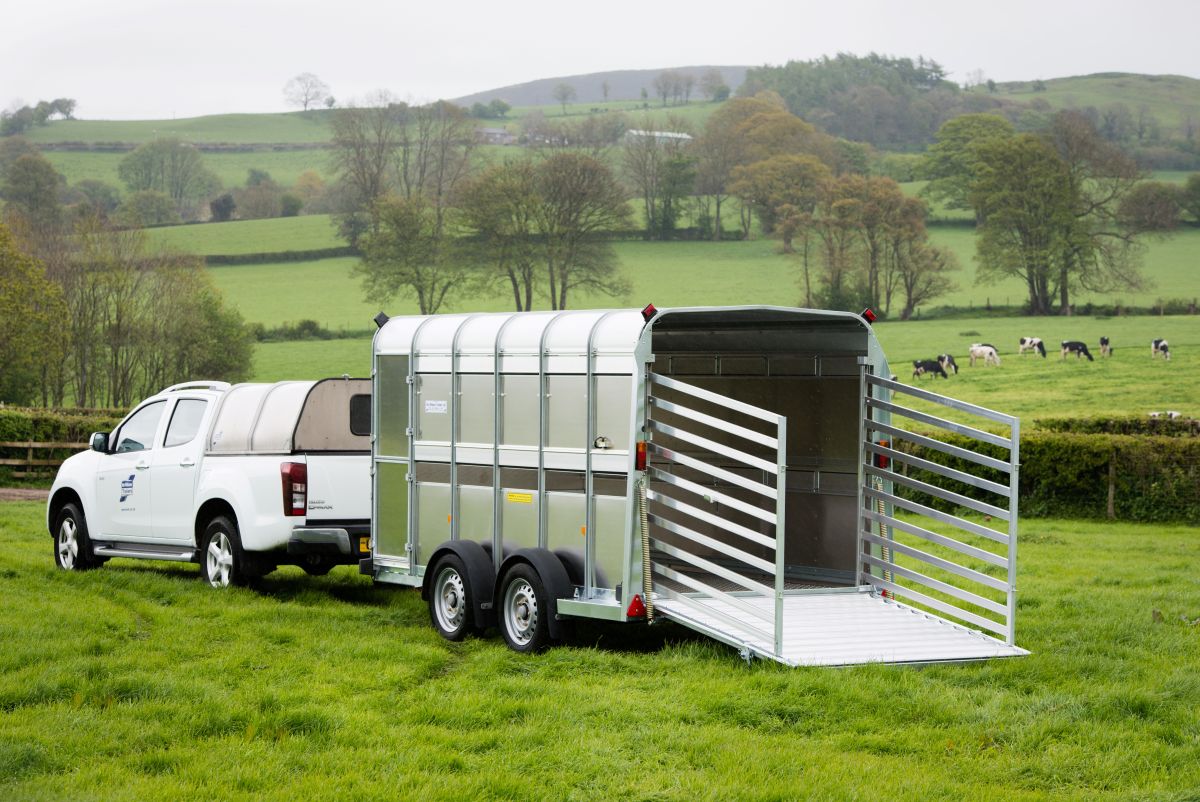

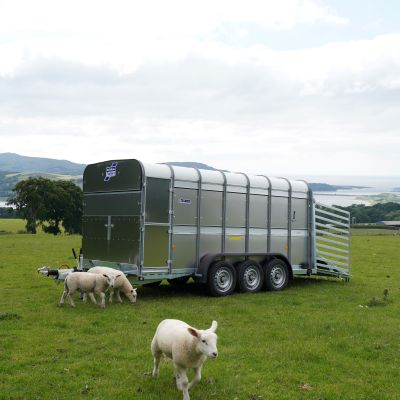

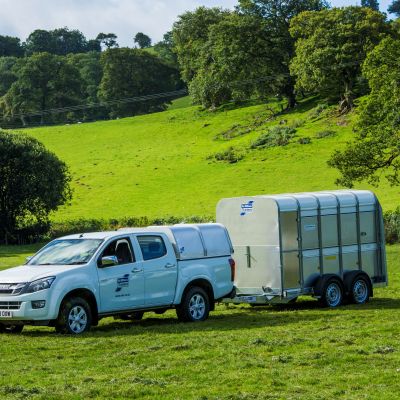

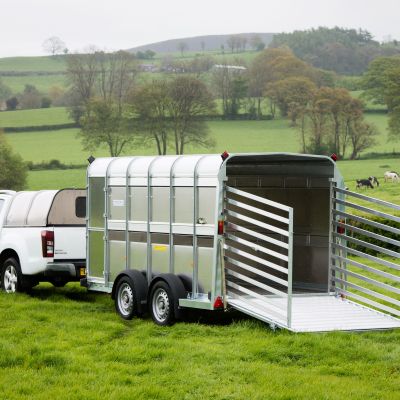

Ifor Williams Trailers Livestock TA510 Range

Body lengths of 10’, 12’, 14’, and now 16’ are available, with internal headroom options or 4’,  6’ and 7’. The 7’ versions can be installed with an optional centre partition, allowing two 16.2hh horses to be transported. All trailers have a maximum gross weight of 3500kg; payload varies between 1950kg and 2550kg depending on size and specification. All sizes are available with either the standard ramp, combination ramp doors or with the EasyLoad ramp and folding deck system.

10’-14’ TA510 trailers are fitted with a twin axle beam (tri-axle as an option on the 12’  and 14’ model and standard on the 16’) , leaf sprung suspension, galvanized steel chassis, aluminium side panels, heat reflecting roof, and grip-faced aluminium planking covered rear ramp.

 NEW Improved EasyLoad Deck System.

Unique to Ifor Williams Trailers, the factory fitted EasyLoad ramp and folding deck system simplifies the loading of the upper deck without the need to manhandle ramps or livestock.

With the deck system folded away the trailer is suitable for use with cattle and other livestock. All components are stored on board the trailer and are conveniently and safely stowed for quick access. When required the deck can be deployed or stowed within a few minutes without the need for any tools or special equipment.

With the decks deployed the EasyLoad ramp can be operated, lifting easily into position, assisted by way of two gas springs. This requires little effort from the operator and stowage is just as effortless.

New in 2024, the Easyload ramp can be unlocked for stowage without having to leave the loading area, once unlocked the operator utilises their weight to lower the ramp before locking it in the stored position.

The EasyLoad ramp is used in conjunction with the folding deck system and must be specified at time of order.

 Specifications

Optional extras

• Ramp gate extensions
• Sump tank (slurry tank)
• Combination ramp/doors
• Large cross divisions
• Interior lighting kit
• Decks
• Small cross divisions (with decks only)
• Rear loading light
• Fold down front vent
• Wind deflector
• Vent gap reducer kit

For more information on the TA510 range of livestock trailers, see: https://www.iwt.co.uk/products/livestock/ta510/

There are many different options, specifications and add-ons for these trailers. Contact Dalton's so we can help to ensure that you have the perfect trailer for your needs.
