Ifor Williams Trailers Log Splitter

Ifor Williams Trailers Log Splitter

The Log Splitter isthe first trailer implement built by Ifor Williams Trailers. They are certain that new and existing customers alike will be impressed with this highly versatile and reliable product.

The designers at Ifor Williams Trailers have stayed true to our company ethos and designed an exquisite piece of equipment that embodies our core values of quality, strength, value, and ease of maintenance.

Features include a powerful 25 tonne hydraulic ram powered by an on-board Honda GX200 petrol engine, the flexibility to have either horizontal or vertical splitting, and the ability to split logs up to 600mm in length.

The Log Splitter also comes with a hi-lo pump which brings the splitting wedge quickly into contact with the log. The log is then split at high force but low speed before returning to the home position at a higher speed ready for the next log. Also fitted as standard is a novel log stripper, useful when splitting those wet or difficult logs that can get caught on the splitting wedge. Quick and easy to deploy, and spring-balanced for ease of use, the splitting column can be orientated for both horizontal and vertical splitting.

Safety is a key feature on the Log Splitter. The two-handed safety control can operate hands-free on the return stroke, automatically disengaging when the splitting wedge has reached its home position. A muffler guard is also included as well as the high grip safety anvil which reduces log slippage. The log guard and toe protector complete the impressive list of safety features which come as standard.

Specification

Features

Powered by a four-stroke petrol engine, the Log Splitter can operate independently as and where required.

• Galvanised Steel Splitting Column and Head
• 25 tonne Splitting Force
• 600mm Max Log Length
• Hi – Lo Pump

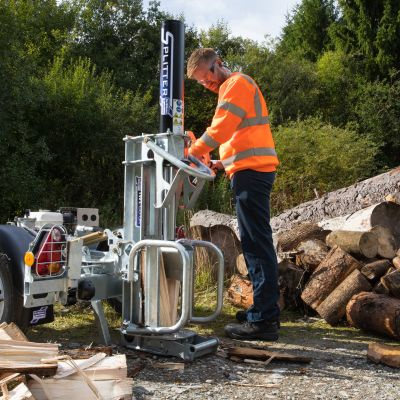

• Horizontal and Vertical Operation
• Counterbalanced Splitting Column
• 250mm Splitting Head
• User Friendly Log Guards
• Log Stripper as Standard
• High Grip Anvil
• Honda Certified Installation

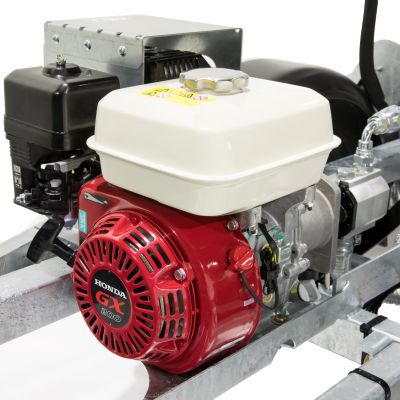

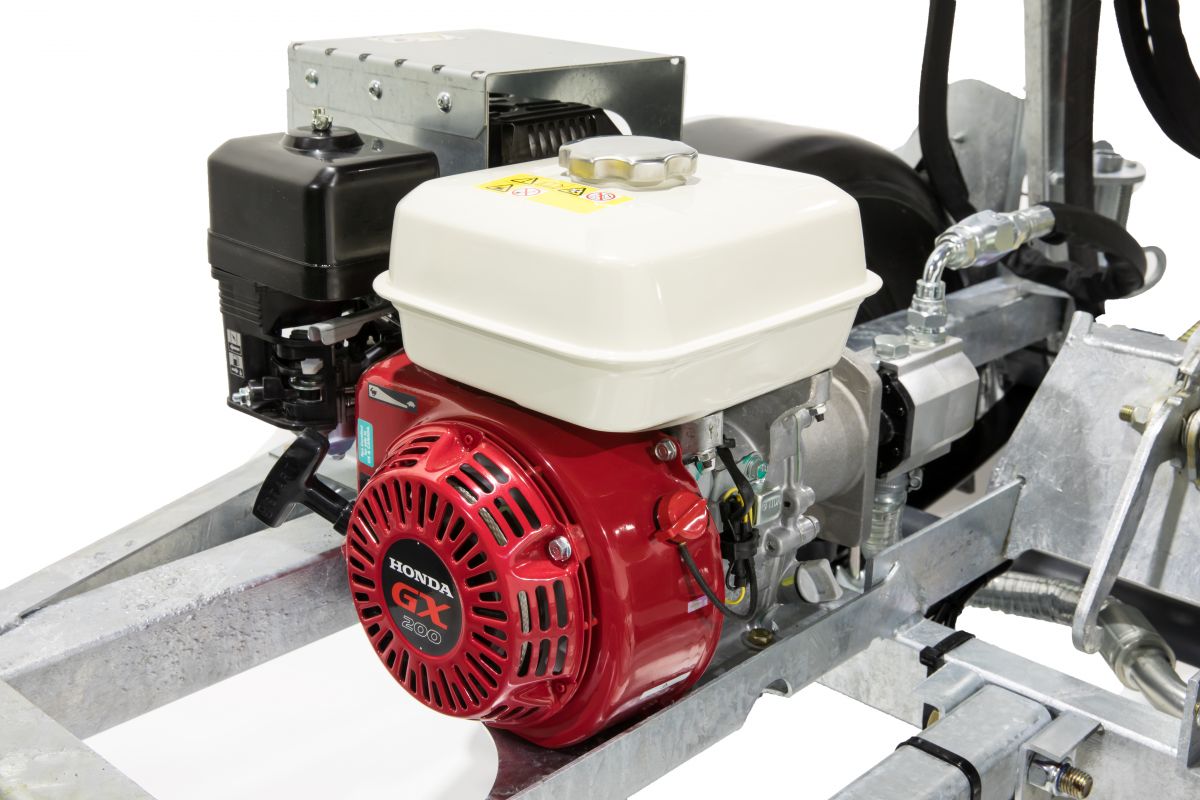

• Honda GX200 Engine
• Multi-Position Control Column

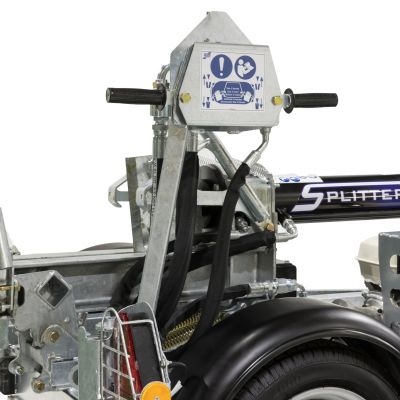

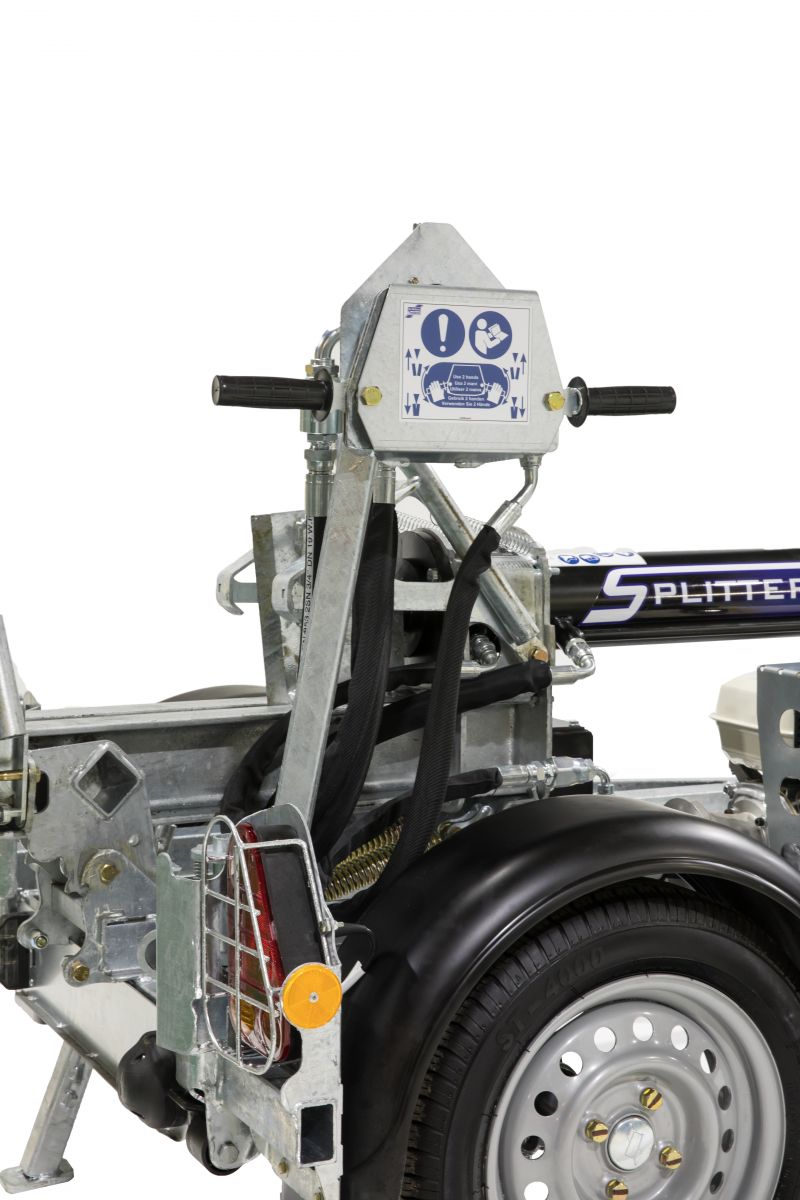

• Two Handed Safety Control/Operation
• Fully Compliant with European Safety Standards
  and CE Marked

Optional extras

• Light guards
• Cover for log splitter
