Ifor Williams Trailers Q Range Unbraked
Ifor Williams Trailers Q Range Unbraked

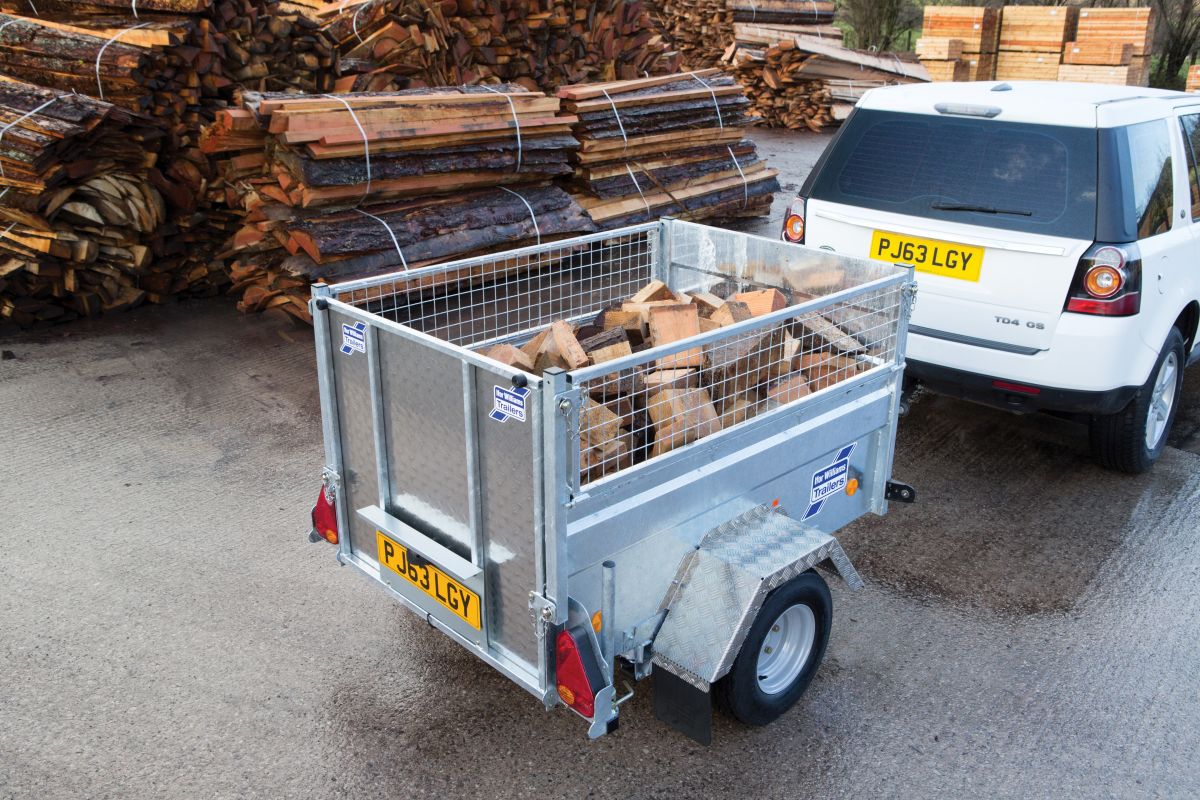

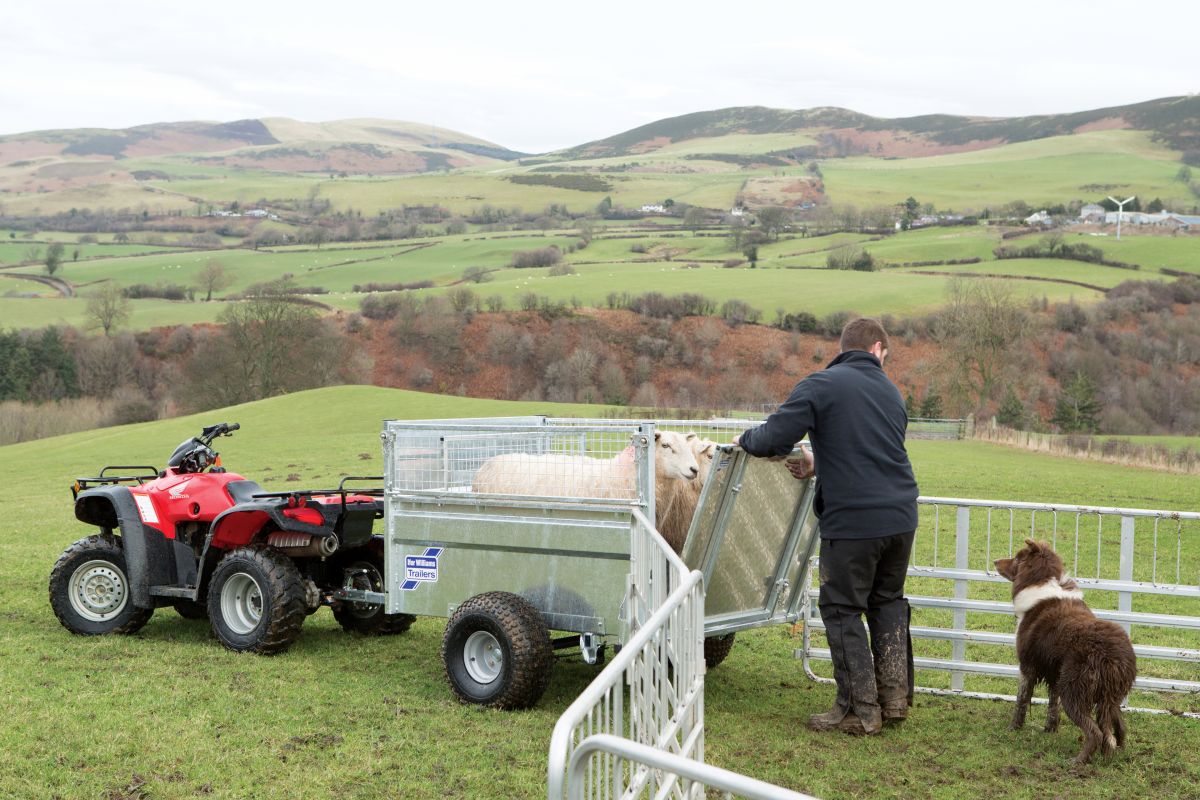

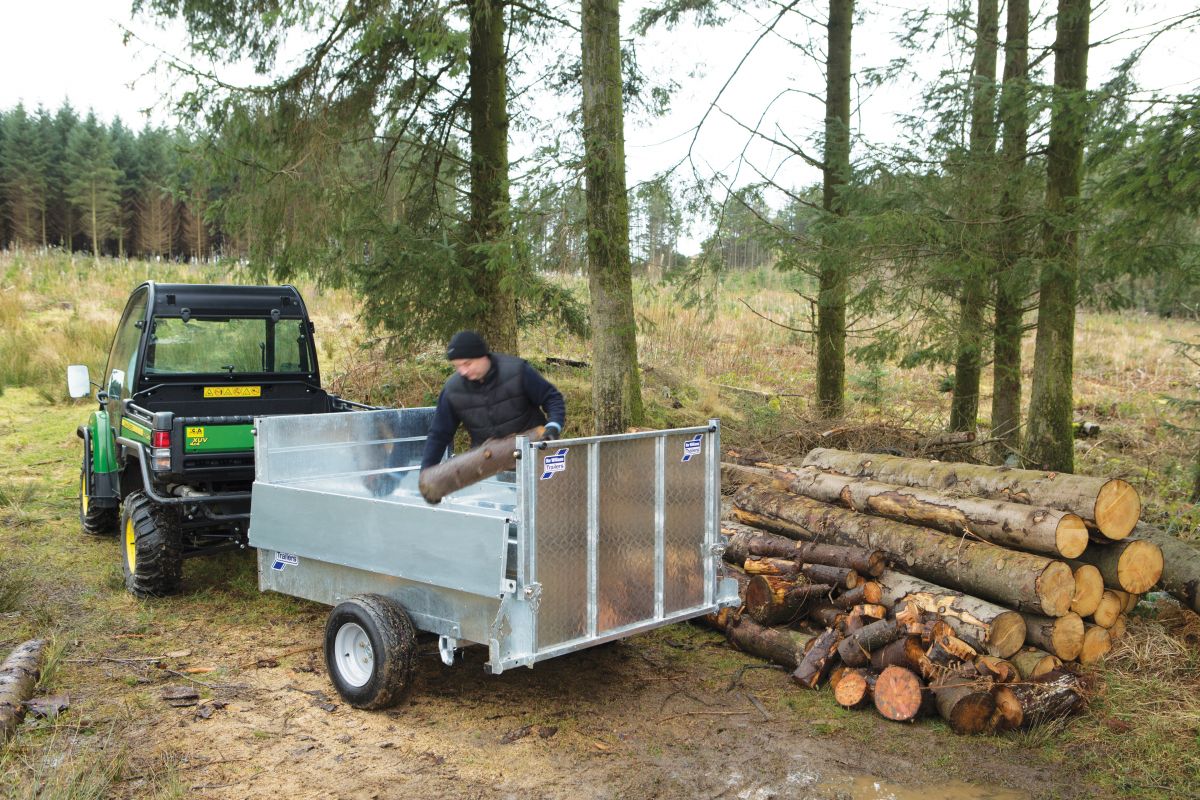

On road they can be pulled by the family car whilst off road they can be pulled by a quad bike or gator.
They have a GVW of 750kg and can cope with different uses for the domestic, commercial or farmyard appliances.
The trailer is built using Ifor Williams leaf spring suspension along with all over galvanised chassis and body.
Q5e off-road has two tyre options available: either flotation tyres or deeper tread depth knobbly tyres. The latter are excellent in muddy conditions or over difficult terrain more easily reached by off-road vehicles.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| Q5e Off Road | 20.5 x 8-10 | 750kg | 185kg | 1.51m | 1.03m | 2.6m | 1.52m |
| Q5e Off Road | 22 x 11-8* | 350kg | 185kg | 1.51m | 1.03m | 2.6m | 1.62m |
| Q5e Road | 20.5 x 8-10 | 750kg | 200kg | 1.51m | 1.02m | 2.6m | 1.52m |
| Q6e Off Road | 20.5 x 8-10 | 750kg | 235kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q6e Road | 20.5 x 8-10 | 750kg | 250kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q7e Off Road | 20.5 x 8-10 | 750kg | 250kg | 2.19m | 1.22m | 3.27m | 1.71m |
| Q7e Road | 20.5 x 8-10 | 750kg | 265kg | 2.19m | 1.22m | 3.27m | 1.71m |
The off-road trailer comes without lights or mudguards - meaning it is specifically for off-road use and makes the trailer less expensive and lighter than its road alternative.
Optional extras
- Roof and roof rack
- Hinged mesh sides
- Hinged solid sides
- Livestock partition gate
- Stock ramp
- Propstand kit
- Off-road swivel hitch (Q5e only)
- Ramp Gates
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
For more information on the Unbraked Q range of trailers, see: https://www.iwt.co.uk/products/q-range/unbraked
There are many different options, specifications and add-ons for these trailers. Contact Dalton's so we can help to ensure that you have the perfect trailer for your needs.
More Details?
If you'd like more information about the Ifor Williams Trailers Q Range Unbraked, please call 01570 470022 or Email us.
