Ifor Williams Trailers - General Duty (GD)
Ifor Williams Trailers - General Duty (GD)
Tough, adaptable and easy to maintain, the General Duty range is designed to withstand the daily rigour of the construction industry and other arduous conditions.
The trailers are built around a welded steel, galvanized chassis with fixed front and side panels. These panels are constructed from formed galvanized steel and are supported by galvanized steel channel sections.
The General Duty range is offered in three internal width options of 4’, 5’ and 5’9” (approximately) and four length options between 6’ and 12’ (approximately), see above table for more details. All models are fitted with the Ifor Williams beam axle and leaf sprung suspension and either a tailboard or rear ramp with assistor.
The IWT General Duty trailers are available with a number of axle options and a maximum gross weight ranging from 1400kg to 2700kg.
Key features
- GD ramp or tailboard
- Resin coated plywood floor
- Spare wheel and carrier
- Heavy duty jockey wheel
- Security marking and registration with TER
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| GD64 Single Axle | 165R13C | 1400kg | 325kg | 1.89m/6'2" | 1.25m/4'1" | 2.95m | 1.75m |
| GD84 Single Axle | 165R13C | 1400kg | 355kg | 2.5m/8'2" | 1.25m/4'1" | 3.60m | 1.75m |
| GD84 Single Axle | 175/75R16C | 1500kg | 395kg | 2.5m/8'2" | 1.25m/4'1" | 3.60m | 1.80m |
| GD84 Single Axle | 6.50R16C | 1500kg | 400kg | 2.5m/8'2" | 1.25m/4'1" | 3.60m | 1.80m |
| GD84 | 165R13C | 2700kg | 450kg | 2.55m/8'2" | 1.25m/4'1" | 4.0m | 1.80m |
| GD85 Single Axle | 165R13C | 1400kg | 395kg | 2.5m/8'2" | 1.58m/5'2" | 4.0m | 2.20m |
| GD85 | 165R13C | 2700kg | 485kg | 2.5m/8'2" | 1.58m/5'2" | 4.0m | 2.20m |
| GD105 | 165R13C | 2700kg | 585kg | 3.11m/10'2" | 1.58m/5'2" | 4.55m | 2.20m |
| GD125 | 165R13C | 2700kg | 585kg | 3.73m/12'2" | 1.58m/5'2" | 4.95m | 2.20m |
| GD106 | 165R13C | 2700kg | 600kg | 3.11m/10'2" | 1.77m/5'9" | 4.55m | 2.30m |
| GD126 | 165R13C | 2700kg | 625kg | 3.73m/12'2" | 1.77m/5'9" | 4.95m | 2.30m |
Optional extras

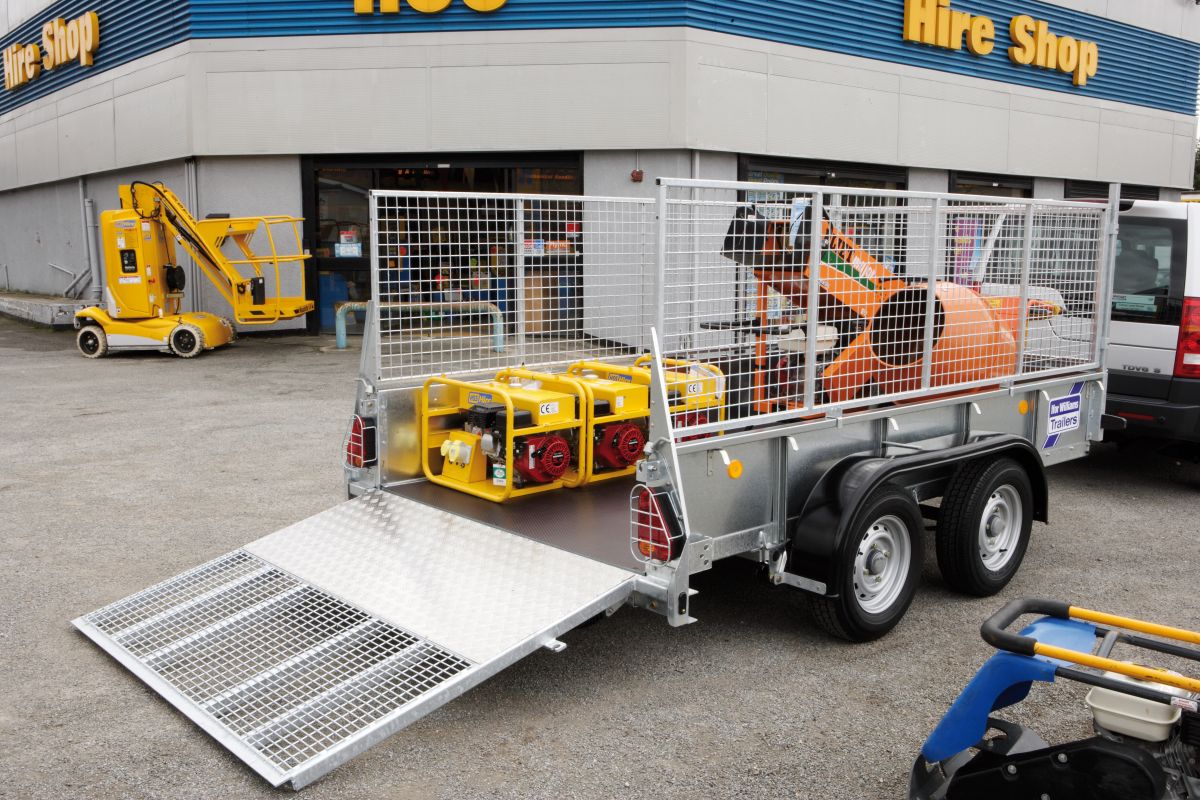

- Mesh sides
- Ladder rack
- Propstands kit

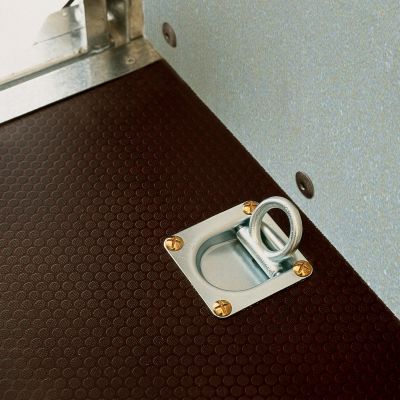

- Lashing rings
- LED lights
- Alloy floor kit
- Winch
For more information on the GD range of trailers, see: https://www.iwt.co.uk/products/general-duty/general-duty/
There are many different options, specifications and add-ons for these trailers. Contact Dalton's so we can help to ensure that you have the perfect trailer for your needs.
More Details?
If you'd like more information about the Ifor Williams Trailers - General Duty (GD), please call 01570 470022 or Email us.
